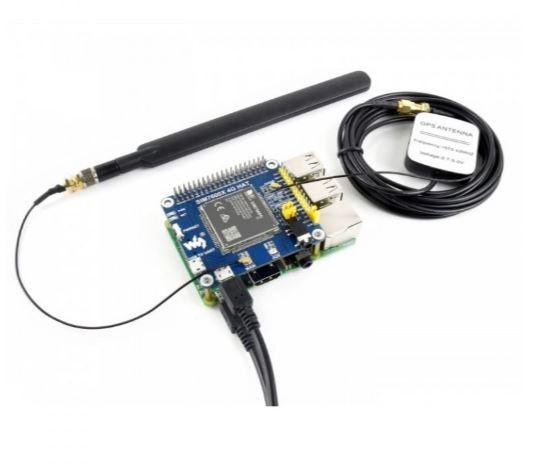

Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support

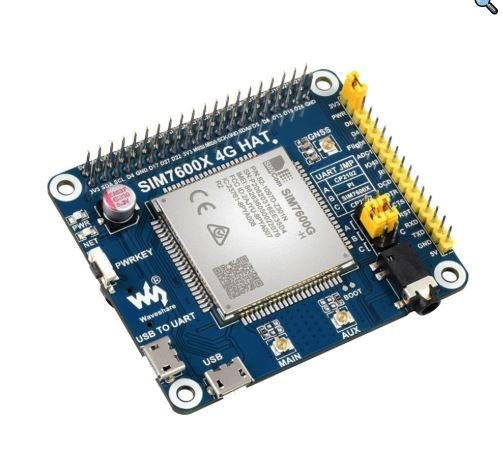

Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support - Image 2

Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support

₹7,316.00 Inc. GST

  1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  2. Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  3. Supports GPS, BeiDou, Glonass, LBS base station positioning
  4. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  5. Onboard CP2102 USB to UART converter, for serial debugging
  6. Breakout UART control pins, to connect with host boards like Arduino/STM32
  7. SIM card slot supports 1.8V/3V SIM card
  8. TF card slot for storing data like files, messages, etc.
  9. Onboard audio jack and audio decoder for making a telephone call
  10. 2x LED indicators, easy to monitor the operating status
  11. Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper
  12. Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  13. Autobauding baudrate: 9600bps ~ 115200bps
  14. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  15. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Out of stock

Category:

Description

  1. LTE Cat-4, 3G, 2G Frequency Bands.
  2. LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink).
  3. 3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink).
  4. MP2128DT, MP1482 power chip
  5. NAU8810 audio decoder
  6. TXS0108EPWR voltage translator
  7. Satellite Bands: GPS/Beidou/GLONASS.
  8. Supports echo cancellation, noise reduction.

Package Includes:
1 x SIM7600G-H 4G HAT Board
1 x 360° foldable LTE Antenna
1 x Magnetic base GPS External Antenna (B) with 2-meter cable
2 x USB type A plug to Micro plug Cable (Small + Lomg)
1 x RPi screws and Standoff pack (2pcs)
2 x Antenna connector
