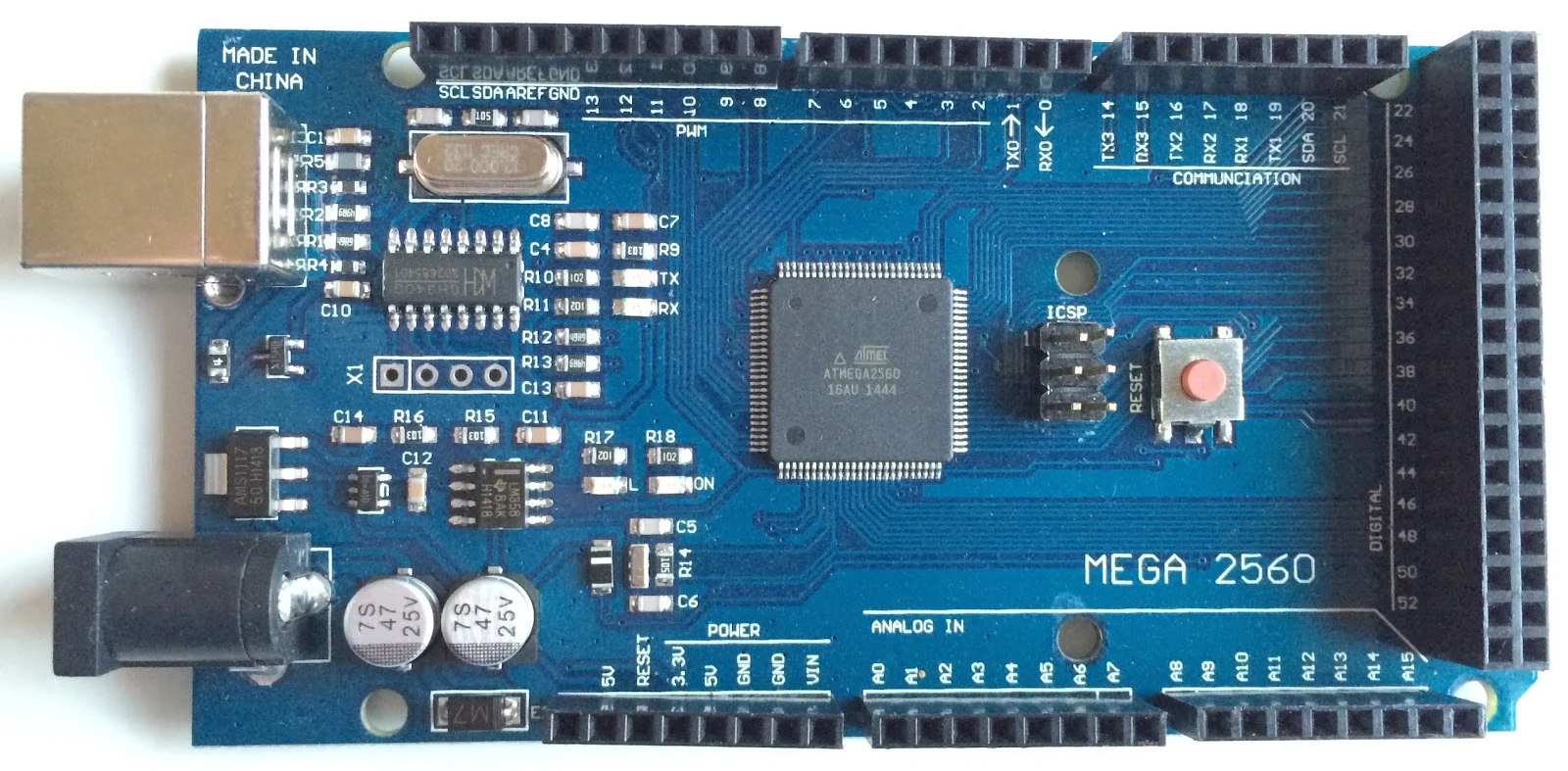

Arduino Mega 2560 Microcontroller Development Board

2,064.98 Inc. GST

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Out of stock

SKU: R12B21 Categories: , , Tags: ,

Description

Features:

  1. ATmega16U2 instead 8U2 as USB to serial converter
  2. 1.0 pinout
  3. Stronger RESET circuit
  4. 5V operating voltage
  5. Input voltage (recommended) range from 7V to 12V
  6. Input voltage (limit) range from 6V to 20V
  7. 40mA DC current per I/O pin
  8. 256KB flash memory of which 8KB used by bootloader
  9. 8KB SRAM
  10. 4KB EEPROMFor more Details – Go to our Tutorials page.



Specification

Weight37 g
Dimensions113 × 53 × 11 mm
