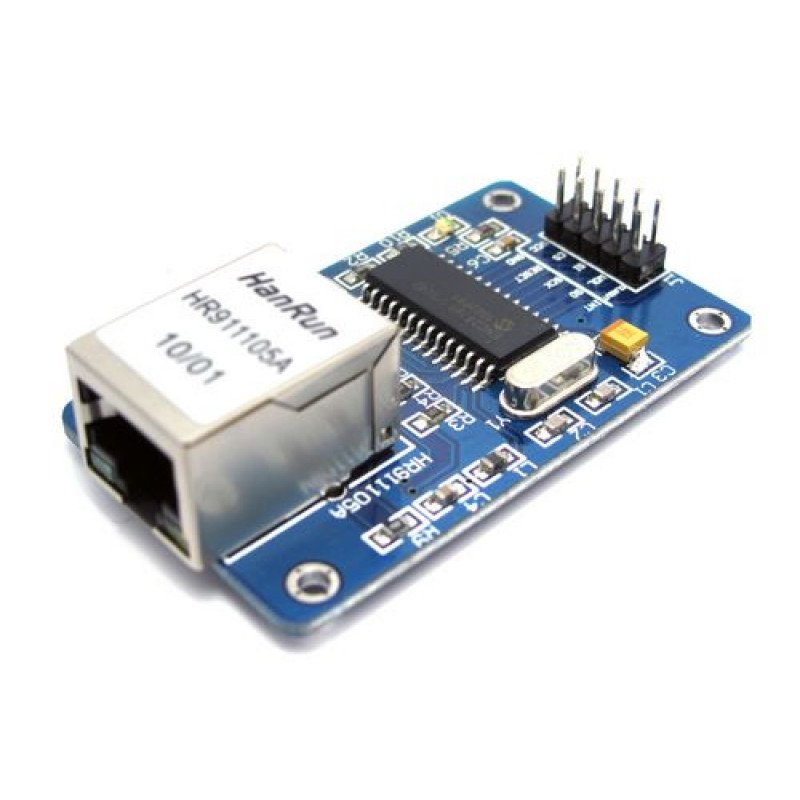

ENC28J60 Ethernet Module(10 Pin Package: SSOP)

Description

1. An SPI interface that serves as a communication channel between the host controller and the ENC28J60.
2. Equips control registers for controlling and monitoring the ENC28J60.
3. A dual port RAM buffer for received and transmitted data packets.
4. An arbiter to control the access to the RAM buffer when requests are made from DMA, transmit and receive blocks.
5. The bus interface that interprets data and commands received via the SPI interface.
6. The MAC (Medium Access Control) module that implements the IEEE 802.3 compliant MAC logic.
7. The PHY (Physical Layer) module that encodes and decodes the analog data that is present on the twisted-pair interface.
