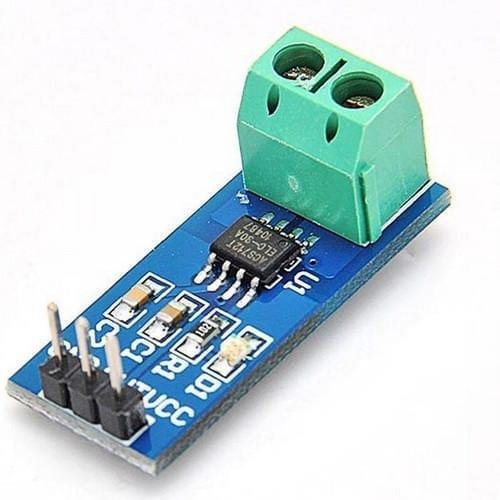

20A Range Current Sensor Module ACS712

117.76 Inc. GST

Features and Benefits
▪ Low-noise analog signal path
▪ Device bandwidth is set via the new FILTER pin
▪ 5 μs output rise time in response to step input current
▪ 80 kHz bandwidth
▪ Total output error 1.5% at TA = 25°C
▪ Small footprint, low-profile SOIC8 package
▪ 1.2 mΩ internal conductor resistance
▪ 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
▪ 5.0 V, single-supply operation
▪ 66 to 185 mV/A output sensitivity
▪ Output voltage proportional to AC or DC currents
▪ Factory-trimmed for accuracy
▪ Extremely stable output offset voltage
▪ Nearly zero magnetic hysteresis
▪ Ratiometric output from supply voltage

1 in stock

SKU: R11B14S01 Categories: ,

Description

Features:

  • The current sensor chips: ACS712ELC-20A
  • pin 5V power supply, on-board power indicator
  • the module can measure the positive and negative 20 amps, corresponding to the analog output 100mV /A no test current through the output voltage is VCC /2.
