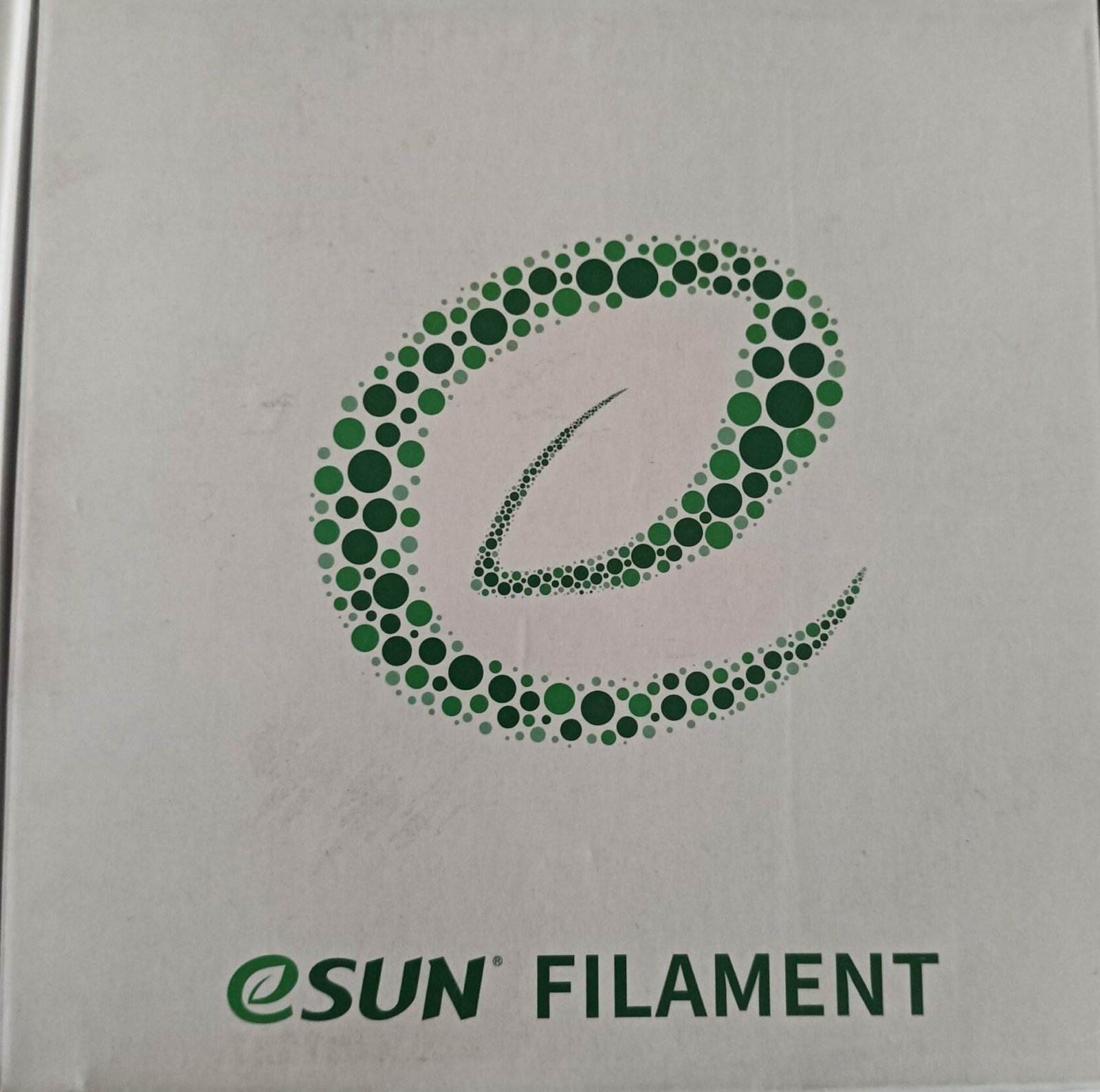

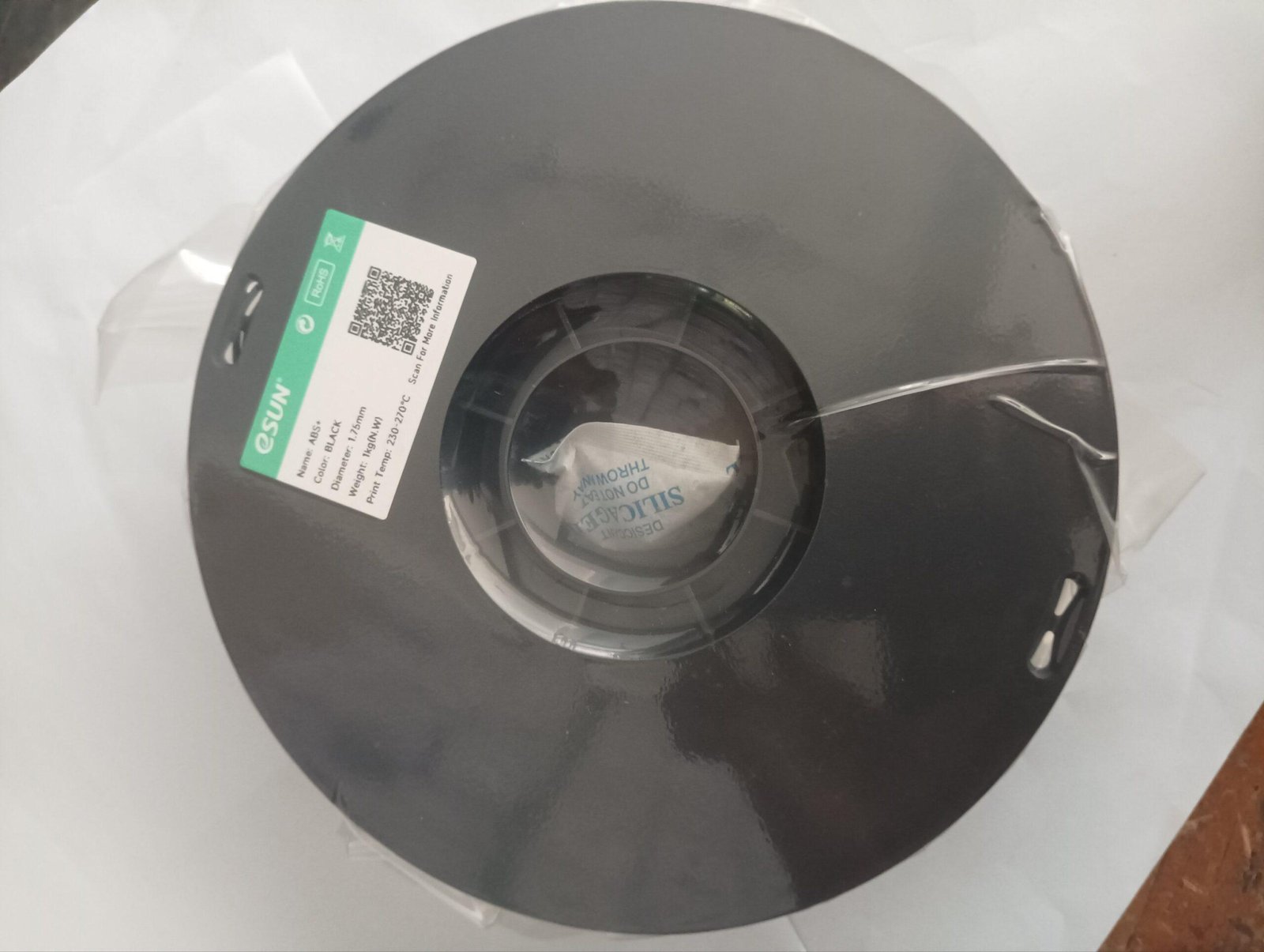

eSUN ABS+ Black 1.75mm 1kg 3D Printer Filament

Description

F02

Material & Physical Properties

• Material Type: ABS+ (Enhanced Acrylonitrile Butadiene Styrene Plus)

• Filament Diameter: 1.75mm

• Dimensional Accuracy: ±0.05mm (up to ±0.02mm depending on the batch)

• Net Filament Weight: 1 kg (2.2 lbs)

• Filament Length: ~410 – 425 metres (varies by spool styling, minimum 330m)

• Density: 1.04 – 1.06 g/cm³

• Melt Flow Index: 15 g/10 min (at 220°C / 10 kg)

Mechanical Properties

• Tensile Strength: 40.12 MPa (XY-axis)

• Flexural Strength: 59.5 MPa (XY-axis)

• Impact Strength (IZOD): 26.45 kJ/m² (XY-axis)

• Heat Distortion Temperature: 73°C – 89°C (at 0.45 MPa)

Recommended Printing Parameters

• Extruder / Nozzle Temperature: 230°C – 270°C (can successfully print down to 220°C depending on hotend)

• Heated Bed Temperature: 95°C – 110°C (minimum 90°C recommended)

• Cooling Fan Speed: 0% (Turn off completely to avoid shrinking/warping)

• Printing Speed: < 200 mm/s (High-speed optimization models handle up to 300 mm/s)

• Enclosure Requirement: Strongly recommended. An enclosed printing chamber is required to maintain internal heat stability and ensure structural bonding.
