MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module

932.59 Inc. GST

Specifications:
Operating Voltage: 3.6v
No of Input pins: 2(Vcc, Ground)
No of Output Pins:2(Serial Data, Serial Clock)
IC Used: None
Weight:4gm, Dimensions: Length: 17.4mm, Width: 11.25mm, Height: 7.22mm

2 in stock

SKU: R11B19S01 Categories: , ,

Description

Introduction:
The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can.

Specifications:
Operating Voltage: 3.6V to 5V (available in 3V and 5V version)
Supply Current: 1.5mA
Object Temperature Range: -70° C to 382.2°C
Ambient Temperature Range: -40° C to 125°C
Accuracy: 0.02°C
Field of View: 80°
Distance between object and sensor: 2cm-5cm (approx.)

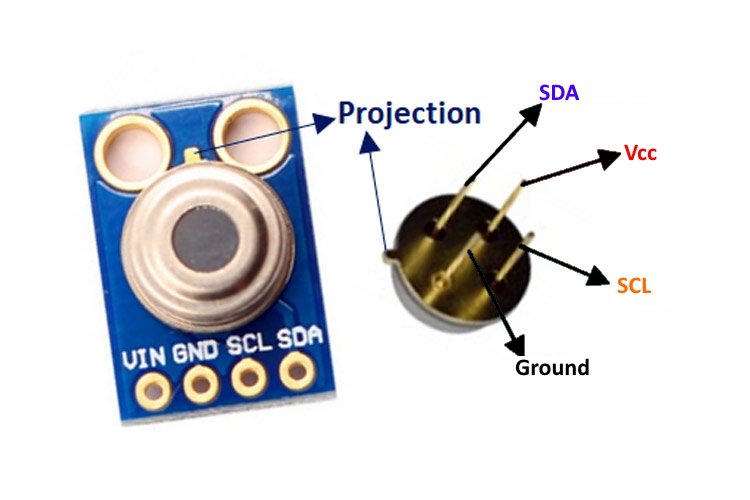

Pin Diagram:

Features:
Works from 3.3V to 5V input, Module has power regulator IC built-in.
Standard I2C interface with built 2xpull upresistors
When measuring the temperature, please maintain a measuring distance of 1 cm
Small size, low cost
Easy to integrate
Factory calibrated in a wide temperature range: -40 to 125 C for sensor temperature and -70 to 380 C for object temperature.
High accuracy of 0.5C over the wide temperature range (0..+50 C for both Ta and To)
Medical accuracy of 0.1C in a limited temperature range available on request
The measurement resolution of 0.01C
SMBus compatible digital interface for fast temperature readings and building sensor networks
Customizable PWM output for continuous reading
Simple adaptation for 8 to 16V applications

Application:
Temperature Measurement of moving objects
Industrial Thermal Gun
Human Body Temperature Measurement
Home/Office Temperature Control
Livestock Monitoring
Movement Detection

Datasheet: https://robu.in/wp-content/uploads/2020/02/MLX90614-Datasheet-Melexis.pdf

Checkout Testing Video: https://www.youtube.com/shorts/s3jA9EApA0w
