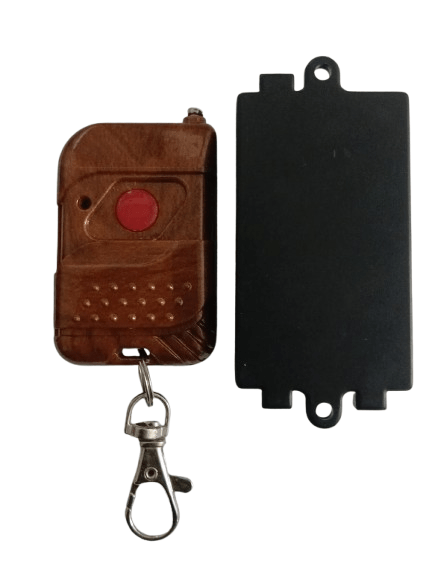

RF 1 Channel Relay Home Automation Device Control Wireless with Remote control Switch without Battery 433MHz

600.00 Inc. GST

  • Description:1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control
    the indicator flash 2 times and off .it mean you learn it successfully .
    2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control
    3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .Package included:

    1 x 12V 1CH 433MHz Wireless Relay Switch Receiver
    1 x 433MHz Wireless Remote Control (Battery is not included)

1 in stock


  • Receiver
    1.Input Voltage: DC10-14V
    2.Standby Current: <5MA
    3.RF Frequency: 433MHZ
    4.RF Working mode:Super heterodyne receiver
    5.Receiver Sensitivity: >90dBm
    6.Remote Control Distance: >100 meter(In open environment)
    7.Decoding Way: MCU Software decoding
    8.Can store the number of remote control:50
    9.Support remote control type: Fixed code, learning code
    10.Channel: 1CH
    11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
    12.Wiring Method:Fixed wiring terminal
    13.Working Voltage: DC12V
    14.Output Current: 10A
    15.Rated load:10A 250VAC / 10A 125VAC
    10A 30VDC / 10A 28VDC
    16.Output:Normally open,Common,Normally closed
    1.Material:ABS Plastic
    2.Battery:23A Battery (Battery is not included)
    3.Operating voltage: 12V
    4.Frequency: 433MHZ
    5.Reference distance: 150 meters (This is the theory distance in open environment without interference, practical application due to the interference environment and decreased)
    6.Current job: 9 ~ 12mA
    7.Transmitting power: 10-15mw
    8.Frequency deviation: ± 0.2MHz
    9.Size (LxWxH): 58x38x15 (mm)Working/output way:

    1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
    2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
    3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
    4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay


Weight60 g
Dimensions083 × 039 × 037 mm
