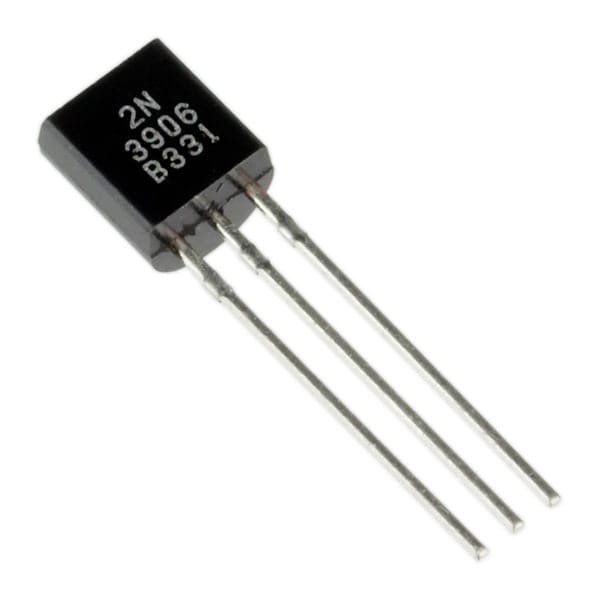

Transistor 2N3906 PNP (TO-92 Pkg)

Description

Features

• Collector emitter voltage (Vce) of -40V
• Continuous collector current (Ic) of -200mA
• Power dissipation of 625mW
• Operating junction temperature range from -55°C to 150°C
• Collector emitter saturation voltage is less than 400mV at Ic=10mA
• DC current gain is greater than 30 at Ic=100mA
