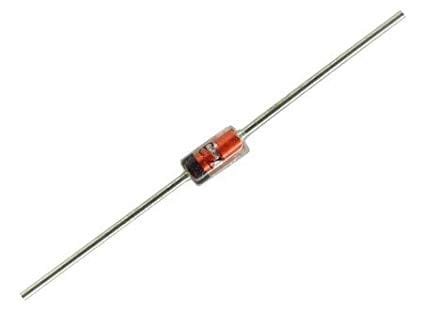

Zener Diode 5.1V

1.99 Inc. GST

Specifications

  • Voltage – Zener (Nom) (Vz): 5.1VDC
  • Power – Max: 1W
  • Impedance(Max) (Zzt): 7 Ohm
  • Voltage – Forward (Vf) (Max) @ If: 5.355VDC
  • Current – Reverse Leakage @ Vr: 10?A @ 1V
  • Tolerance: ?5%
  • Mounting Type: Through Hole, Axial
  • Package / Case: DO-41, Axial
  • Operating Temperature: -65 – 200?C
  • Other Names: 1N5338BG

Features-

Zener Voltage Range – 3.3 V to 91 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
DO-41 (DO-204AL) Package
Double Slug Type Construction
Metallurgical Bonded Construction
Oxide Passivated Die
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16″ from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any

800 in stock

SKU: R43B01S13_C14 Categories: , ,

Description

Voltage Rating (DC):     5.1 V
Min Operating Temperature: –   65 C
Mount : Through Hole
Element Configuration:  Single
Max Operating Temperature:    200 C
Max Reverse Leakage Current:    100 nA
Peak Reverse Current:   100 nA
Zener Voltage:    5.1 V
Number of Pins:   2
Max Power Dissipation:   500 mW

Specification

Weight1 g
Dimensions60 × 3 × 3 mm
