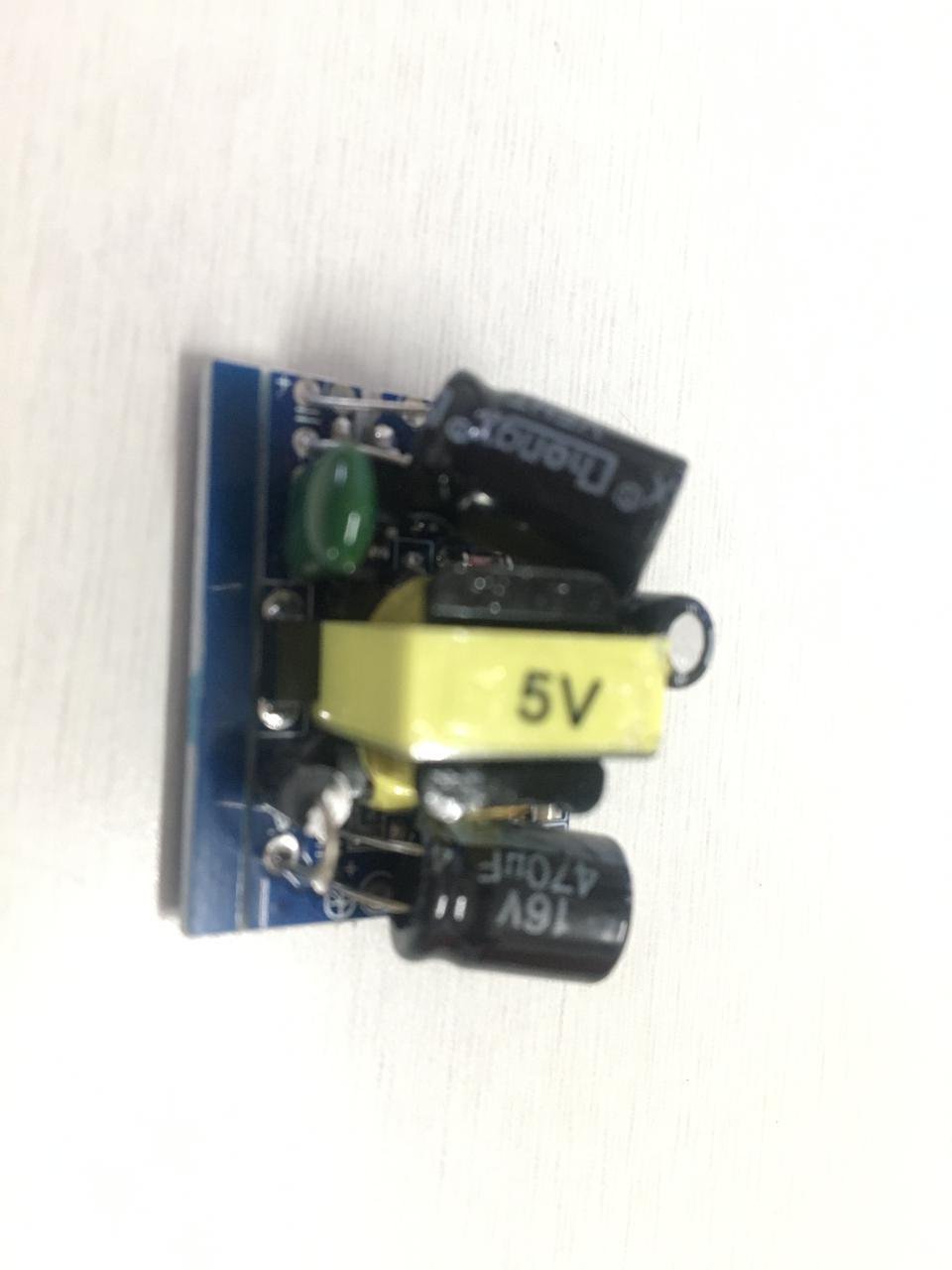

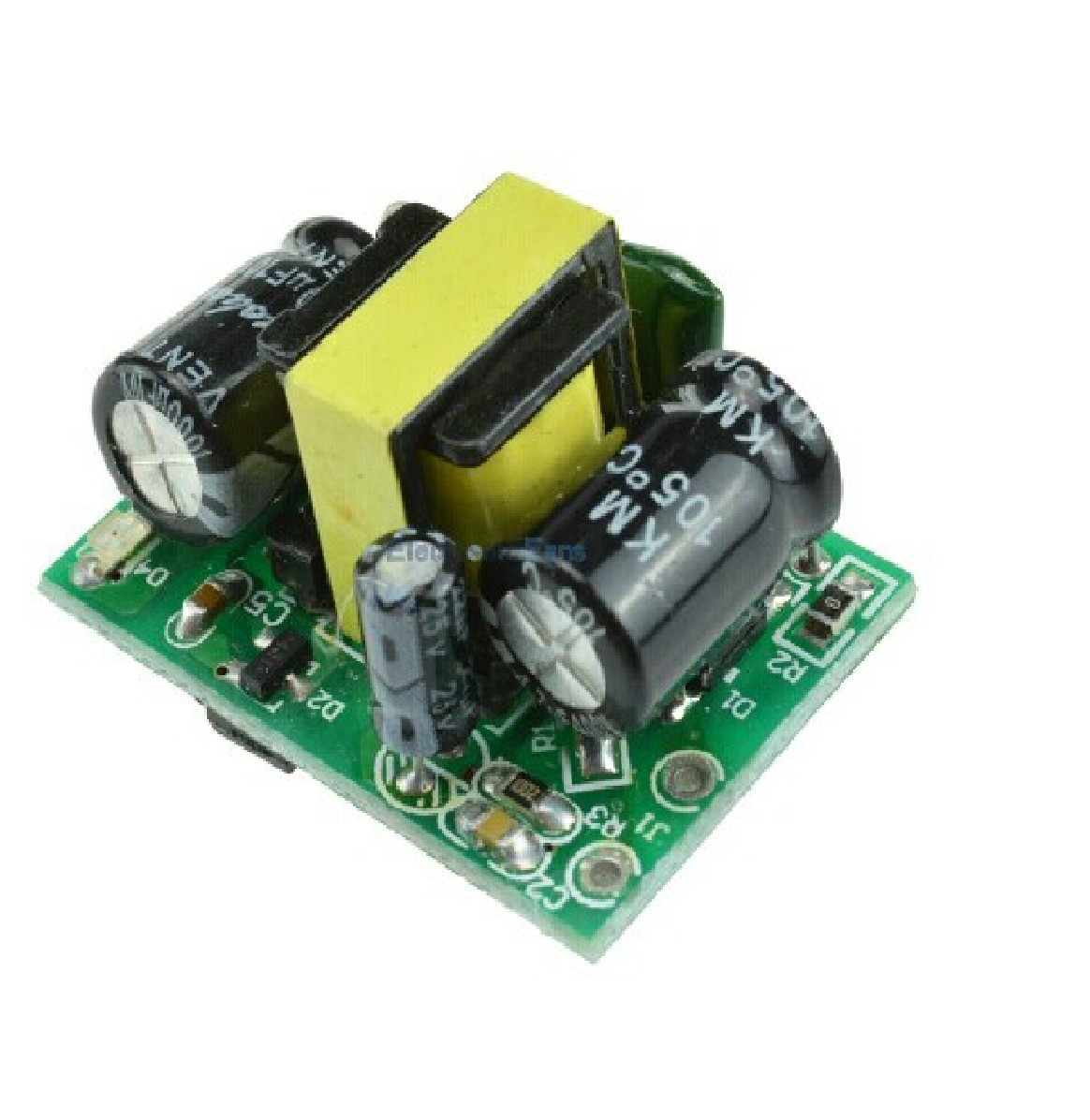

5v 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module (SMPS)

107.38 Inc. GST

Features

  • Input voltage range: 50V-277VAC and 100-300VDC
  • Full load power: 3.5W
  • Output current: 700mA, enters constant current mode when fully loaded
  • Output LED indicator
  • Efficiency is about 80%

2 in stock

SKU: R12B05S06 Category:

Description

Specifications:

  • Input voltage range: 50V-277VAC and 100-300VDC
  • Full load power: 3.5W
  • Output current: 700mA, enters constant current mode when fully loaded
  • Output LED indicator
  • Efficiency is about 80%
  • Ultra-thin and ultra-small size
  • Supply Voltage: 220VAC
  • Low ripple and low noise
  • Output overload and short circuit protection
  • High efficiency
  • High power density
  • The product is designed to meet the requirements of the EMC and Safety Test
  • Low power consumption
  • Environmental protection
  • Meets UL and CE requirement
  • Input voltage: AC 85 ~ 265v 50 / 60HZ or DC100v-370v,
  • Output voltage: DC5V (± 0.2V)
  • Package included: 1 x 5V 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module

Input voltage: AC 85 ~ 265v 50 / 60HZ or DC100v-370v Output voltage: DC5V (± 0.2V) Output Current: 700mA Power: 3.5W Item Unit Minimum Typical values Maximum Test Conditions Input voltage range V ac 85 110/220 265 Under full load condition Input voltage range V dc 100 150/300 370 Input Current A 0.0273(AC110V) 0.014(AC220V) Under full load condition Input inrush current A 20 Under full load condition The output voltage Minimum current Maximum current Peak current Output voltage range Ripple +5V 0A 700mA 800mA 4.80~5.2V 60mV Package included: 1 x 5V 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module
