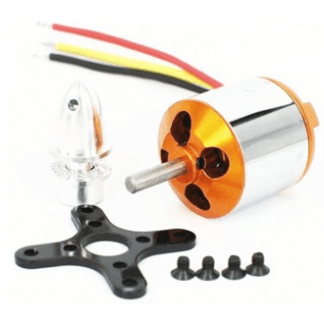

BLDC Motor A2212 1800KV Brushless Motor

397.31 Inc. GST

Specifications:-

  • KV: 1800
  • No load Current : 10 V : 0.5 A.
  • Current Capacity: 12A/60s
  • No Load Current @ 10V: 0.5A
  • No. Of Cells: 2-3 Li-Poly
  • Motor Dimensions: 27.5 x 30mm
  • Shaft Diameter: 934;3.17mm
  • Shaft diameter : 3.175mm.
  • Minimum ESC Specification: 18A (30A Suggested)
  • Thrust @ 3S with 1045 propeller: 1000gms approx
  • Thrust @ 3S with 0945 propeller: 650gms approx
  • Thrust @ 3S with 0845 propeller: 550gms approx

8 in stock

Description

Features

A2212 is a brushless outrunner dc motor specifically made to power Quadcopters and Multirotors. It is a 1800kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inches to 10-inch propellers. Use this to build powerful and efficient quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

Specifications:-

  • KV: 1800
  • No-load Current : 10 V : 0.5 A.
  • Current Capacity: 12A/60s
  • No Load Current @ 10V: 0.5A
  • No. Of Cells: 2-3 Li-Poly
  • Motor Dimensions: 27.5 x 30mm
  • Shaft Diameter: 934;3.17mm
  • Shaft diameter: 3.175mm.
  • Minimum ESC Specification: 18A (30A Suggested)
  • Thrust @ 3S with 1045 propeller: 1000gms approx
  • Thrust @ 3S with 0945 propeller: 650gms approx
  • Thrust @ 3S with 0845 propeller: 550gms approx
